| General Configurations | |||
|---|---|---|---|

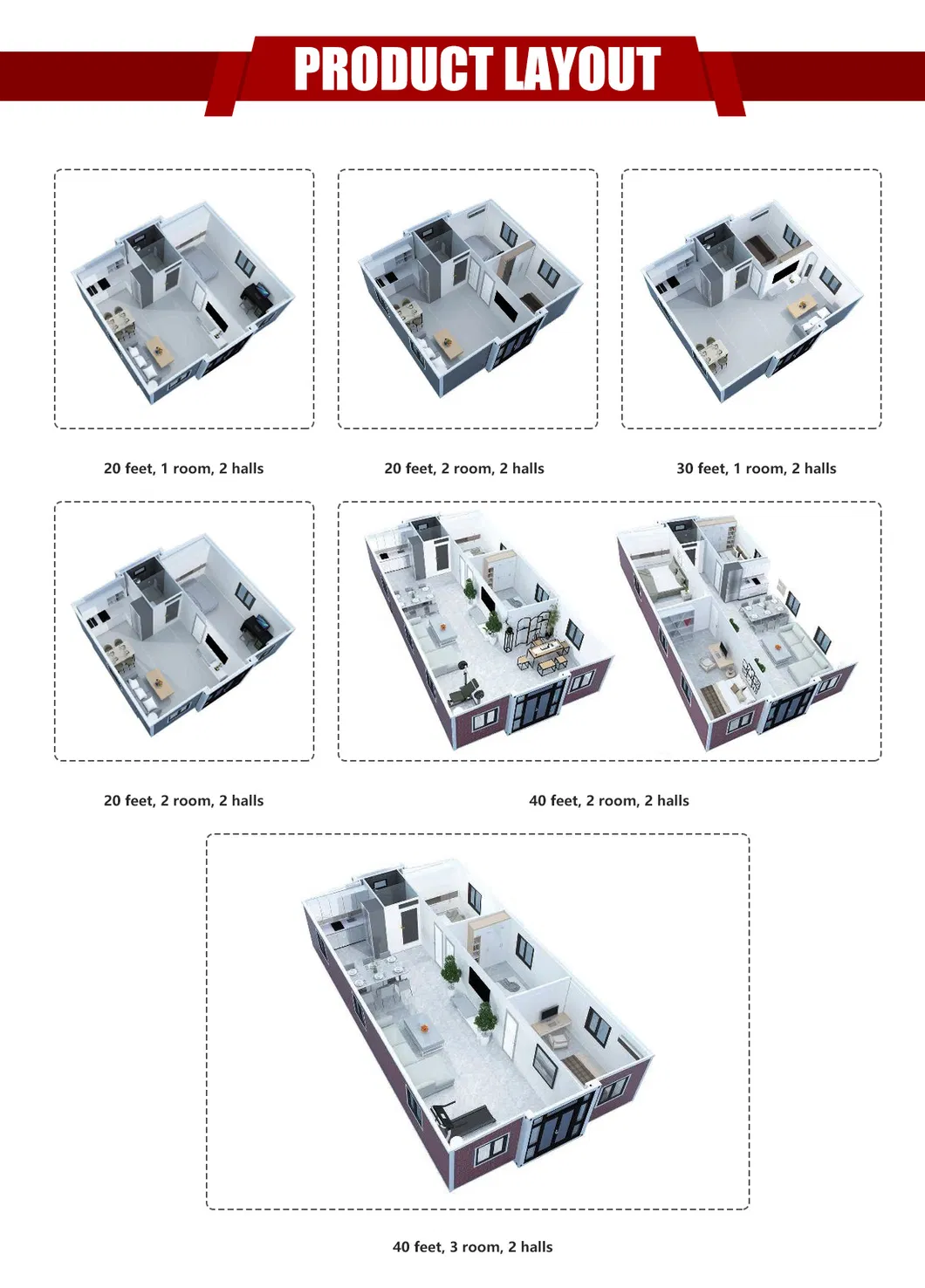

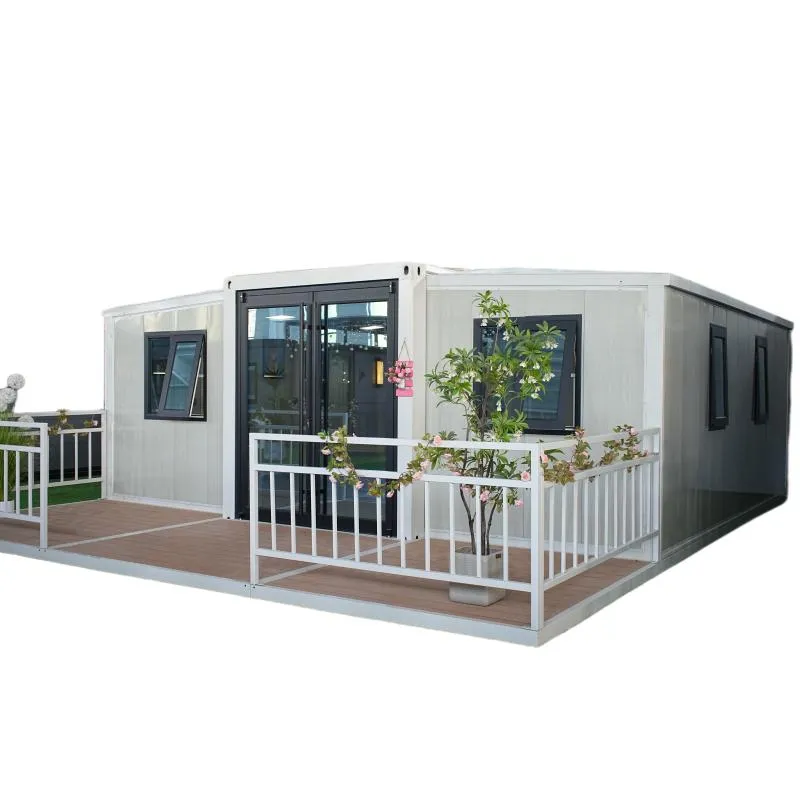

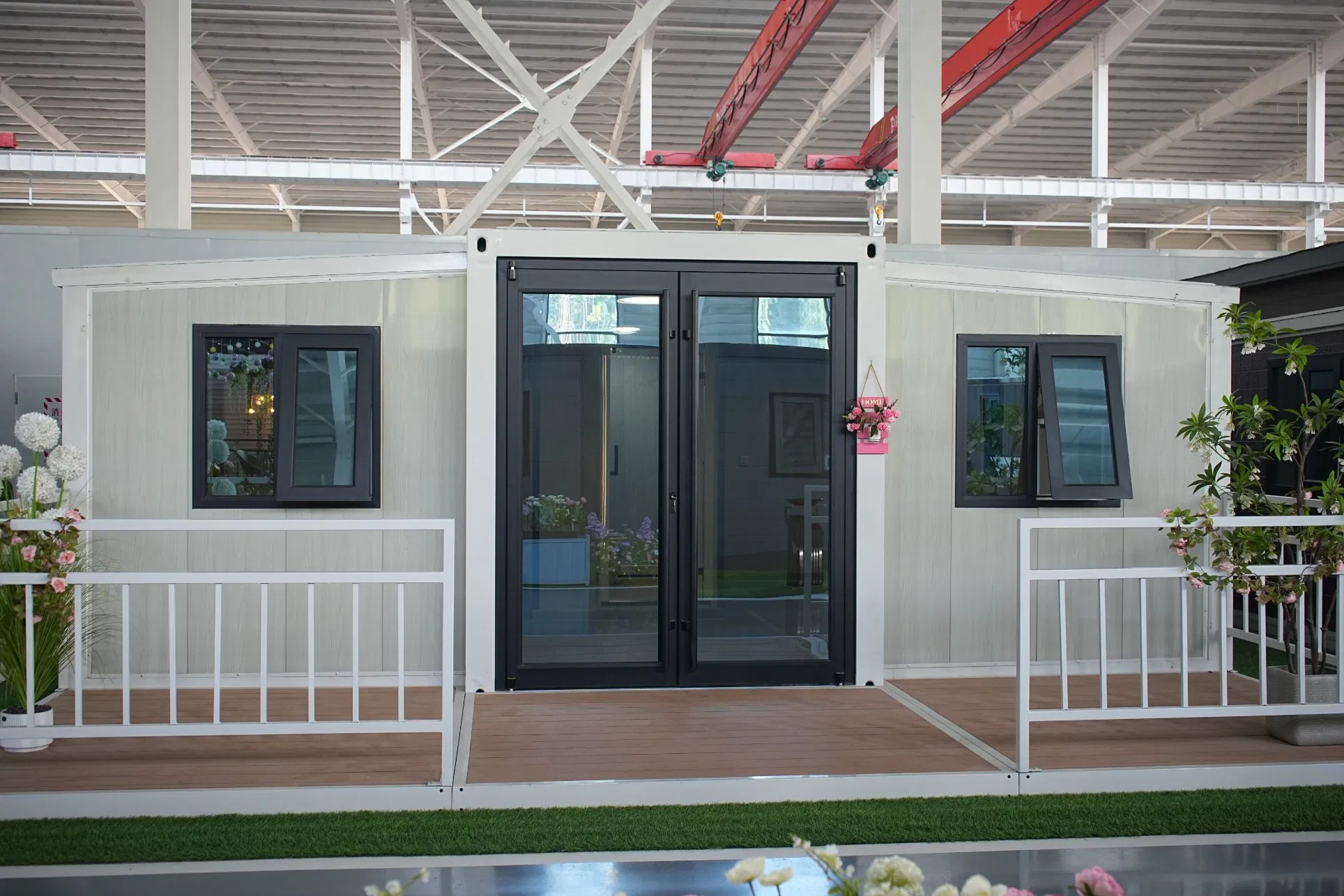

| Product Model | 20 feet | House Type | One Hall |
| Expanded Size | L5900 * W6420 * H2450 mm | Accommodations | 2 - 4 people |
| Internal Dimensions | L5740 * W6260 * H2250 mm | Power Consumption | 12 KW |
| Folded Size | L5900 * W2200 * H2450 mm | Total Net Weight | 3.1 tons |
| Floor Area | 38 m² | ||
| No. | Section | Components | Specifications |
|---|---|---|---|

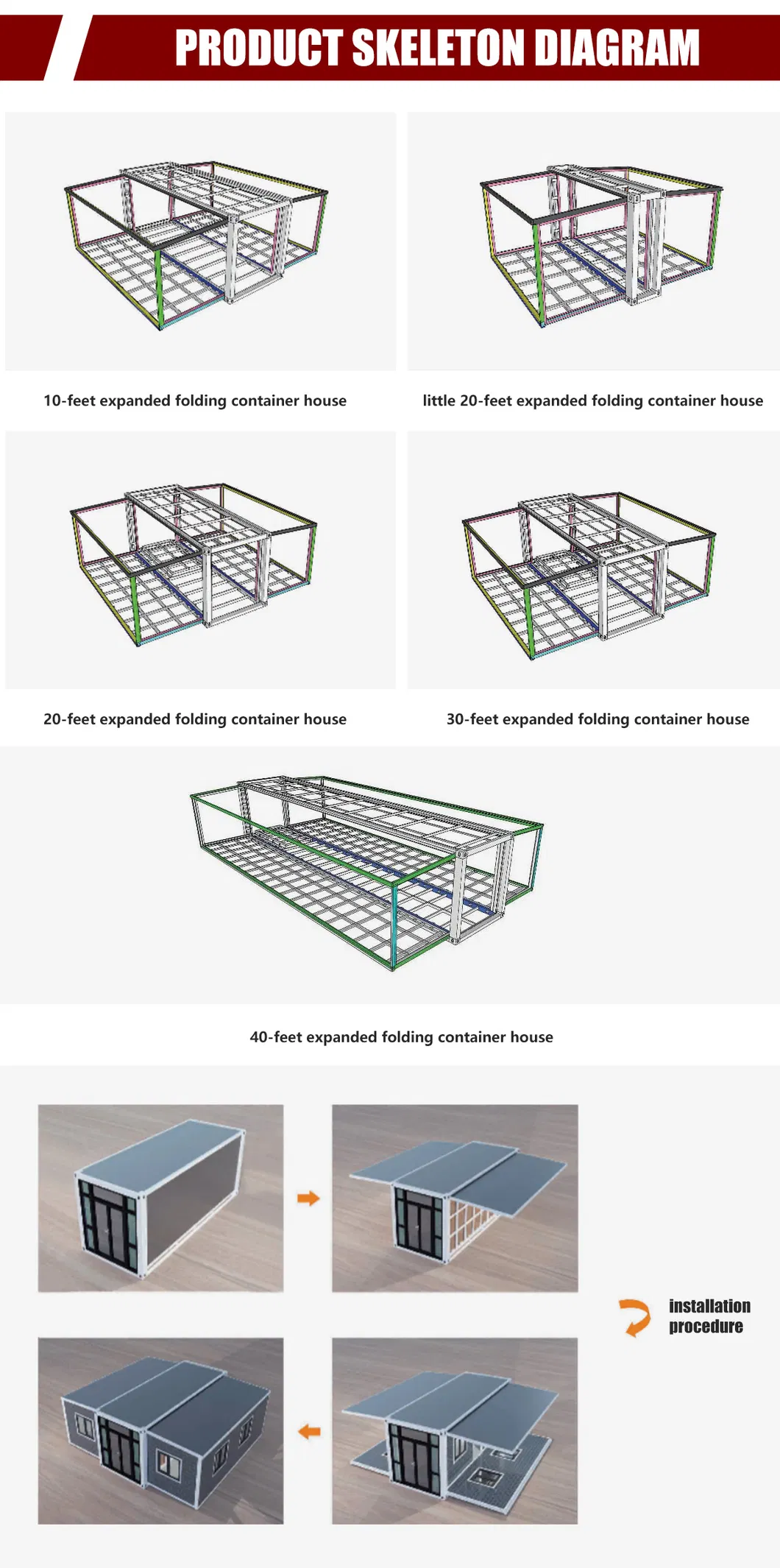

| 1 | Main Frame (fully galvanized) |
Top side beam | 80*100*3.0mm square tube outsourcing 2.0 bending parts |
| 2 | Top beam | 80*100*3.0mm square tube wrapped with 2.0 bending parts | |
| 3 | Bottom side beam | 80*100*3.0mm square tube wrapped with 2.0 bending parts | |
| 4 | Bottom beam | 80*100*3.0mm square tube wrapped with 2.0 bending parts | |
| 5 | Hanging head | 12.8 Portable Steel Anti-detachment Hook | |
| 6 | Steel column | 80*100*3.0mm square tube outsourcing 2.0 bending parts | |
| 7 | Side Frame (fully galvanized) |
Top frame | 50*100*2.5mm square tube outsourcing 2.0 bending parts |
| 8 | 40*80mm*1.8mm P-shaped pipe | ||
| 9 | Bottom frame | 80*100*3.0mm square tube outsourcing 2.0 bending parts | |
| 10 | Folding hinge | 130mm galvanized hinge | |
| 11 | Protective Coating | Overall framework | Electrostatic spray molding / straight white plastic powder |
| 12 | Roof System | Main external top plate | T50mm EPS color steel plate + corrugated veneer t0.4mm |
| 13 | Outer top plate (wing) | T100mm EPS color steel plate + corrugated veneer t0.4mm | |
| 14 | Internal ceiling panels | 200 type ceiling panel | |
| 15 | Wallboard | Side/Front/Rear walls | T65mm EPS color steel plate |
| 16 | Inner partition board | T50mm EPS color steel plate | |
| 17 | Ground | Center floor | 18mm thick fireproof cement fiber floor |
| 18 | Floor on both sides | Bamboo plywood 18mm thick | |
| 19 | Doors & Windows | Sliding window | Plastic steel sliding window (920*920mm) |
| 20 | Single door | Steel single door (840*2030mm) | |
| 21 | Electrical System | Circuit breaker system | One 32A leakage protector. Voltage 220V, 50HZ |
| 22 | Light | 30*30 flat lamp, large ceiling lamp | |
| 23 | Socket | Standard international three-hole and five-hole sockets (Customizable) | |
| 24 | Light switch | Double open, single key switch (Customizable) | |
| 25 | Wiring | Incoming Line 6², Air conditioning socket 4², Ordinary socket 2.5², Lighting 1.5² (Customizable) | |
| 26 | Accessory | General Fittings | Top corner line, skirting line, corner wrapping, waterproof tape, sling, structural adhesive, and glue gun |
