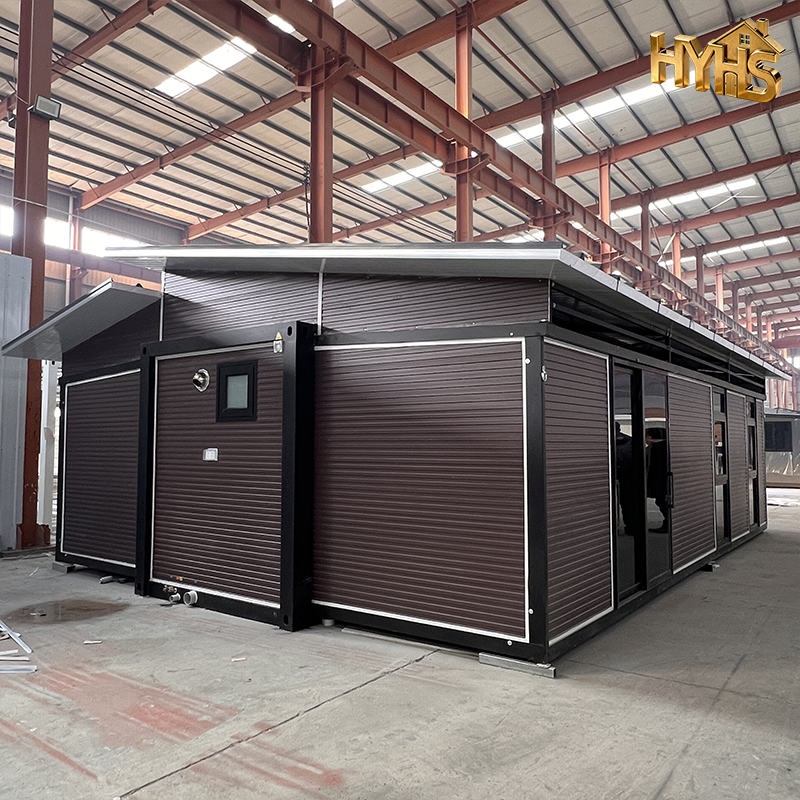

40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
1 / 5
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building
40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building

40Ft 20Ft Luxury Modern Prefab Villa 2-5 Bedrooms Foldable Expandable Container House Mobile Tiny Supermarket Office Building

Send Inquiry

Product Description

Wood Grain Double-Wing Expansion House Exterior View
Expansion House Layout Plan
Expansion House Structure Detail 1
Expansion House Structure Detail 2

Technical Parameters

20-FT Standard Wood Grain Double-Wing Expansion House Technical Parameters
Basic Information Expanded size (mm) L*W*H L5900*W6300*H2480
Internal space (mm) L*W*H L5640*W6140*H2240
Folded size (mm) L*W*H L5900*W2200*H2480
Weight (kG) 2500
Framework Main beam Galvanized square tube 80*100*2.5MM Q235
Integrated column head Galvanized folding piece 150*210*2.0MM Q235
Sub-frame Galvanized square tube 40*60*1.0MM Q235
Hinges Galvanized thickened hinge Q235
Frame color Painting process Black frame
Floor Middle floor 18mm glass magnesium board (does not contain asbestos)
Both sides floor 18mm glass magnesium board (does not contain asbestos)
Floor leather Floor leather Palm wood
Insulated Wall Wall panel 70mm sandwich sandwich board, color roll double-sided 0.25 (wood grain color) Standard sandwich material is EPS
Partition 50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as above
Main top and side top 50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as above
Electrical System Parameters
  1. Standard Australian standard wires, 62 incoming wires, 4' air conditioning sockets, 2.5- ordinary sockets, 1.5- lighting. (Circuits that meet certification requirements can be customized according to the country)
  2. Circuit breaker system; 1 2P63A main switch, 1 2P32A/2P20A/2P16 branch leakage protector.
  3. Lighting; 6 LED ceiling lights.
  4. Sockets: Standard Australian three-hole socket (socket standards can be configured according to customer requirements)
Door and Window System Entrance door Standard thermally-insulated aluminum doors and windows (double glazed tempered glass with blue film) open outwards (door frame is black) Size: W1890*H2230
Window Standard aluminum alloy (double glass, tempered, blue film) sliding window with diamond mesh (window frame is black) 920*920*6 pieces

Product Gallery

Interior View 1
Interior View 2

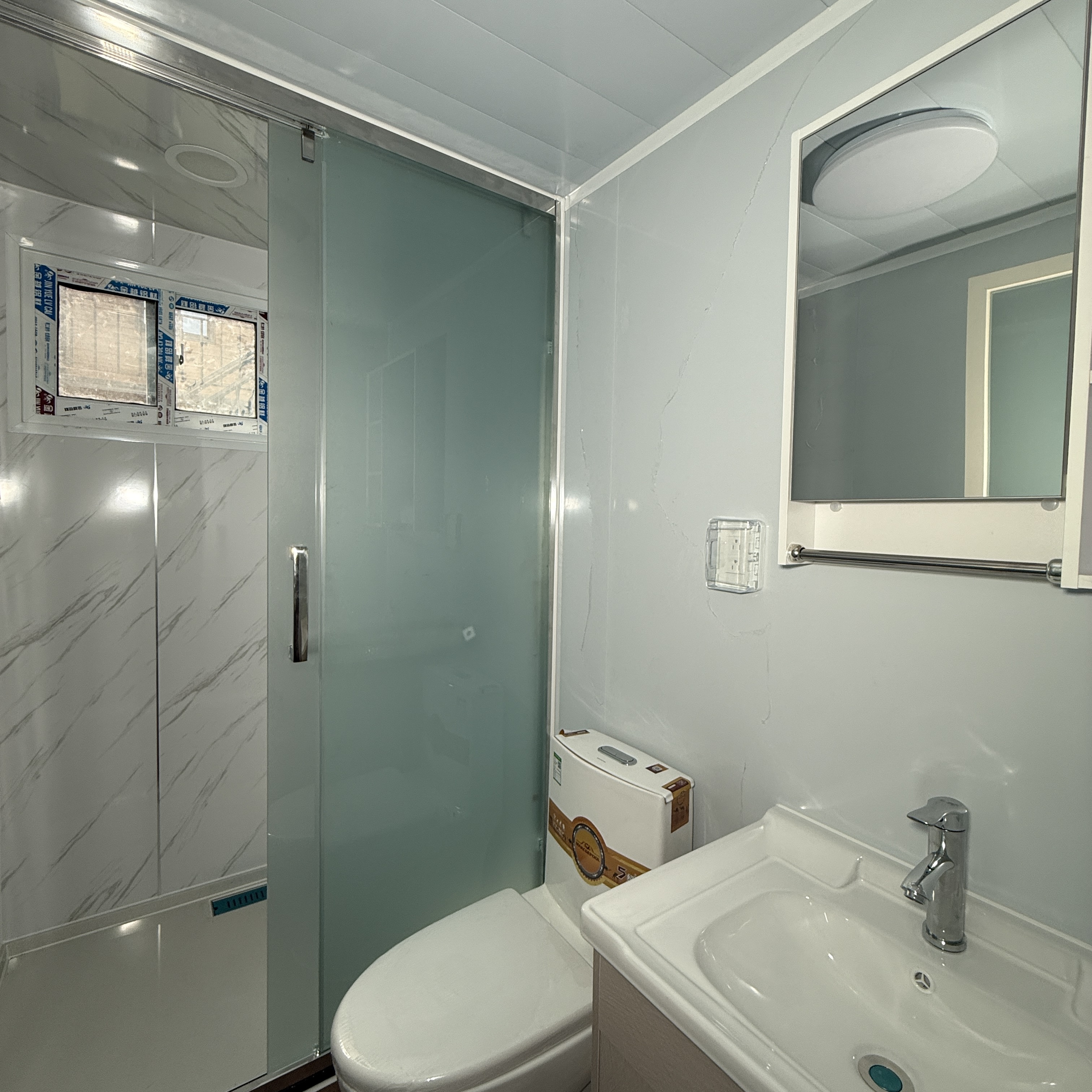

Interior Bathroom View
Production Process 1
Production Process 2
Transportation Loading 1

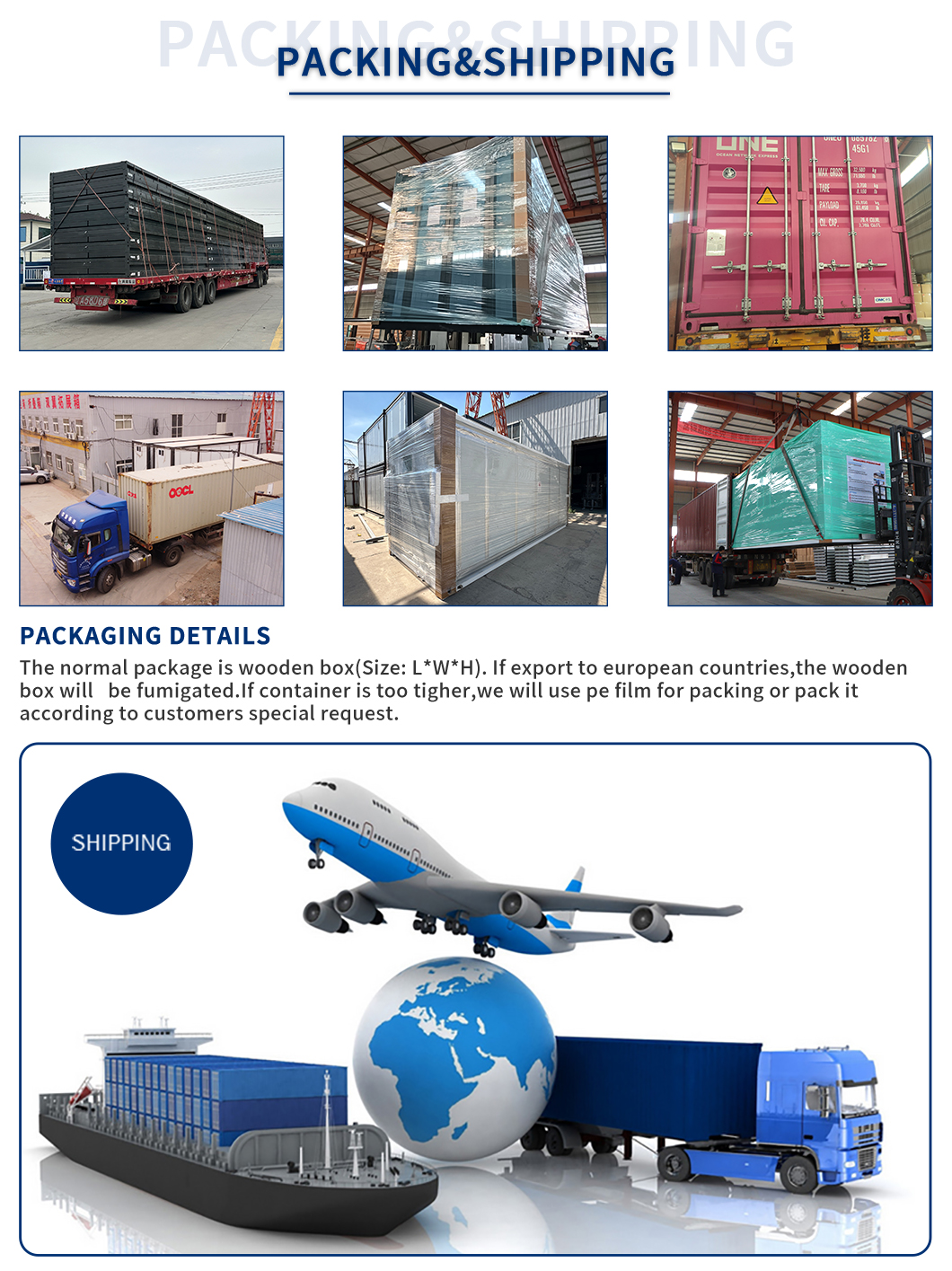

Transportation Loading 2

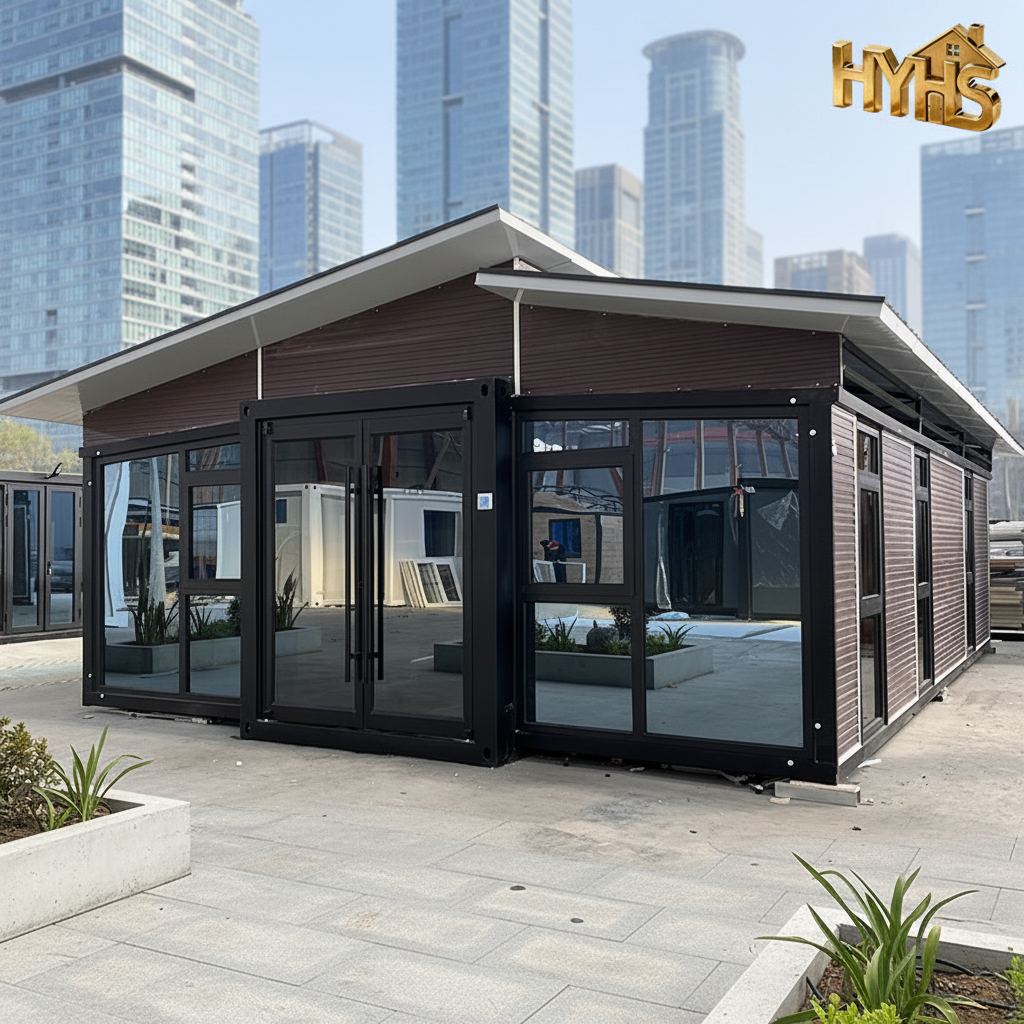

Installation Completion View

Frequently Asked Questions

What are the dimensions and weight of the 20-FT expansion house?
The expanded size of the unit is L5900*W6300*H2480 mm, and the folded dimensions are L5900*W2200*H2480 mm. The interior usable space measures L5640*W6140*H2240 mm. The total weight is approximately 2500 kg.
What type of steel framework and wall insulation are used?
The framework uses galvanized square tubes (main beam 80*100*2.5mm and sub-frame 40*60*1.0mm) made of Q235 steel, featuring a black painted frame. The wall panels consist of 70mm EPS sandwich boards with double-sided 0.25 color rolls in a wood grain color finish.
Is the electrical system pre-wired and compliant with regional standards?
Yes. The default configuration includes standard Australian standard wires, air conditioning sockets, ordinary sockets, and a complete circuit breaker system (including main switches and branch leakage protectors). The circuits and sockets can be customized to meet specific certification requirements of your country.
What are the door and window specifications?
The entrance door features standard thermally-insulated aluminum framing with double-glazed tempered glass and blue film, measuring W1890*H2230 mm. The windows are standard sliding aluminum alloy types (920*920 mm, 6 pieces) featuring double-glazed tempered glass with blue film and diamond mesh screens.
What materials are used for the floors?
Both the middle and side sections of the floor are constructed using an 18mm glass magnesium board, which is completely asbestos-free. The top finish is a durable palm wood design floor leather.
Can the internal room partitions and layout be customized?
Yes, the structure supports customization. The internal partitions utilize 50mm EPS sandwich panels, which can be configured to partition different living spaces according to specific customer requirements.
