Fire Resistant Portable Expandable Prefab Cabin Worker Labor Camp Accommodation CE Factory Direct Sale

Product Description

I. Core Features

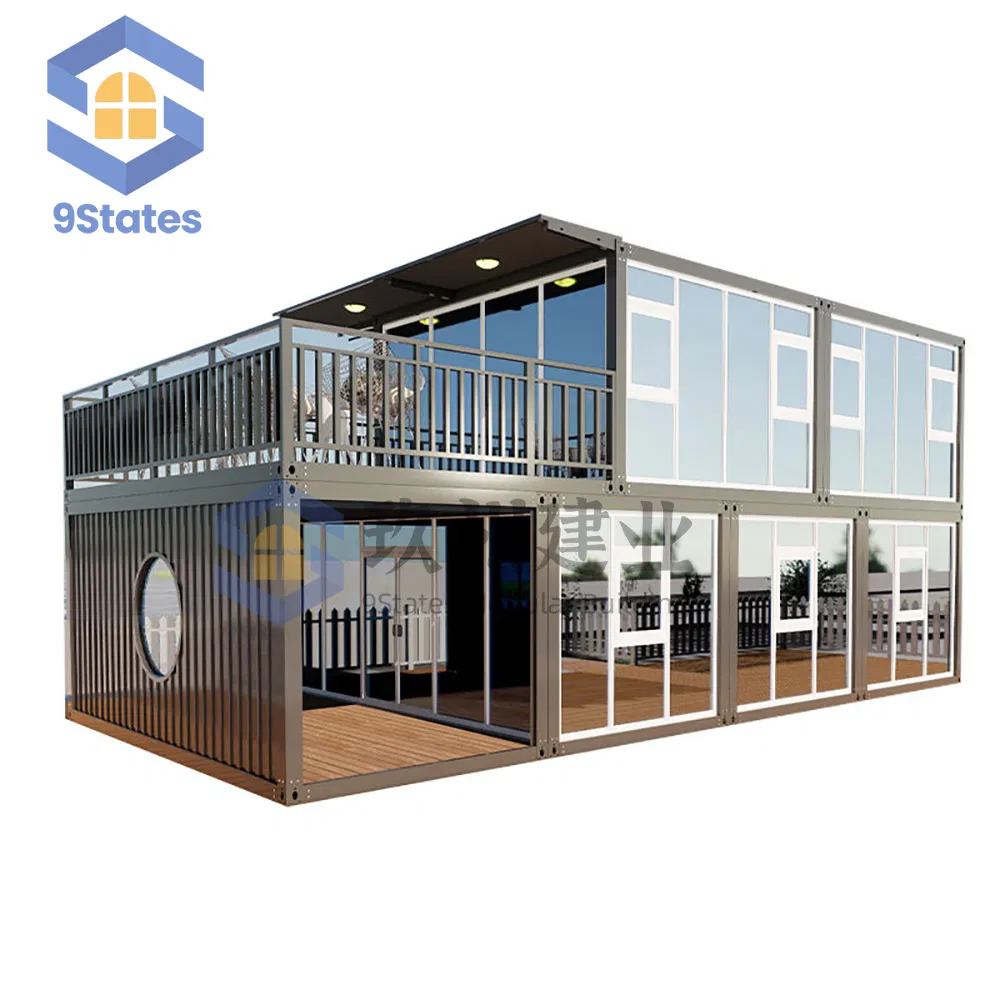

1. Modular and Standardized Design The main structure uses (primarily 20-foot/40-foot) custom modular units as building blocks. The dimensions are standardized (e.g., 20-foot container: 6m long x width). Multi-story buildings can be constructed, and units can be used individually or combined freely (horizontal splicing, vertical stacking) to meet various space requirements.
2. Robust and Durable Structure The main material of the container is Q235B steel, with a fully welded frame. It can withstand wind forces of up to 10-12 levels and seismic forces of 6-8 levels. It is corrosion-resistant (original shipping containers have a service life of 15-20 years (for refurbished containers). The design is adaptable to marine environments).

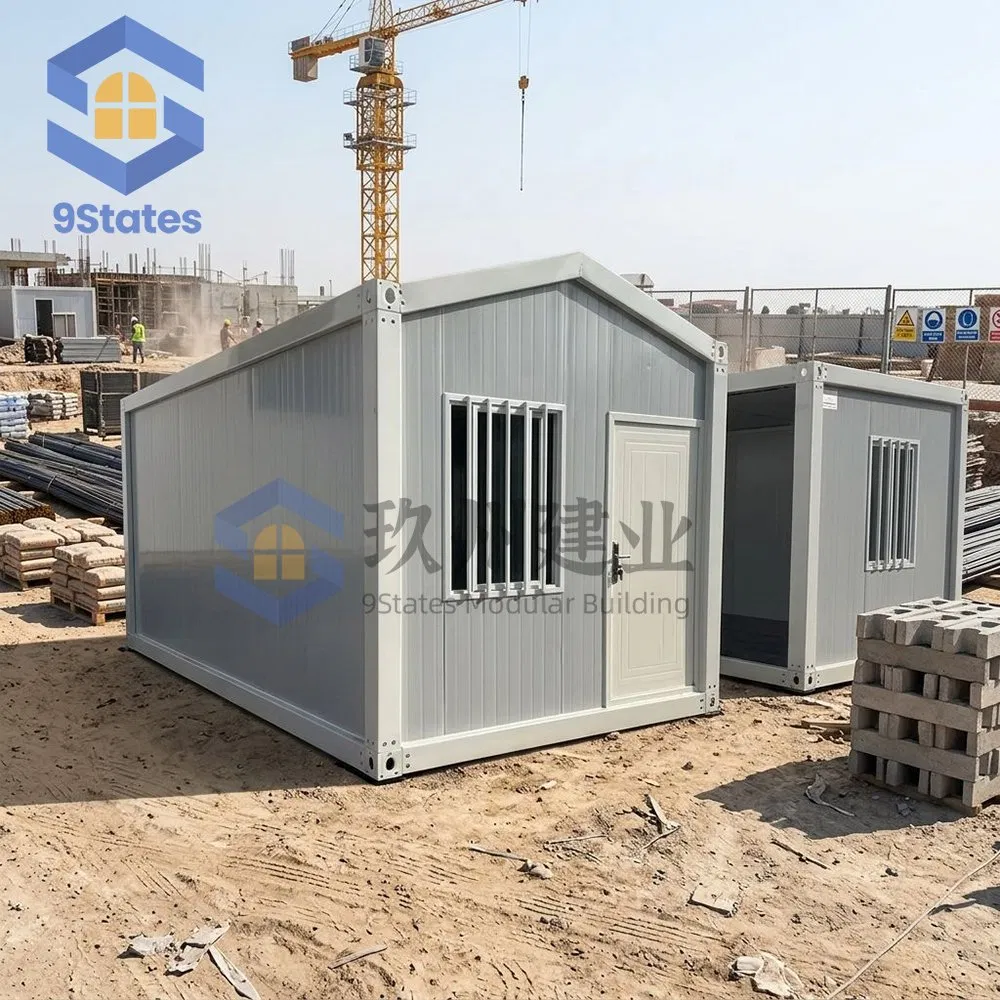

3. High Mobility The entire structure is an integrated steel unit and can be transported as a whole by forklift or trailer without disassembly. This is suitable for temporary or relocatable scenarios (such as construction site project offices, temporary exhibition halls), and can be reused after relocation.

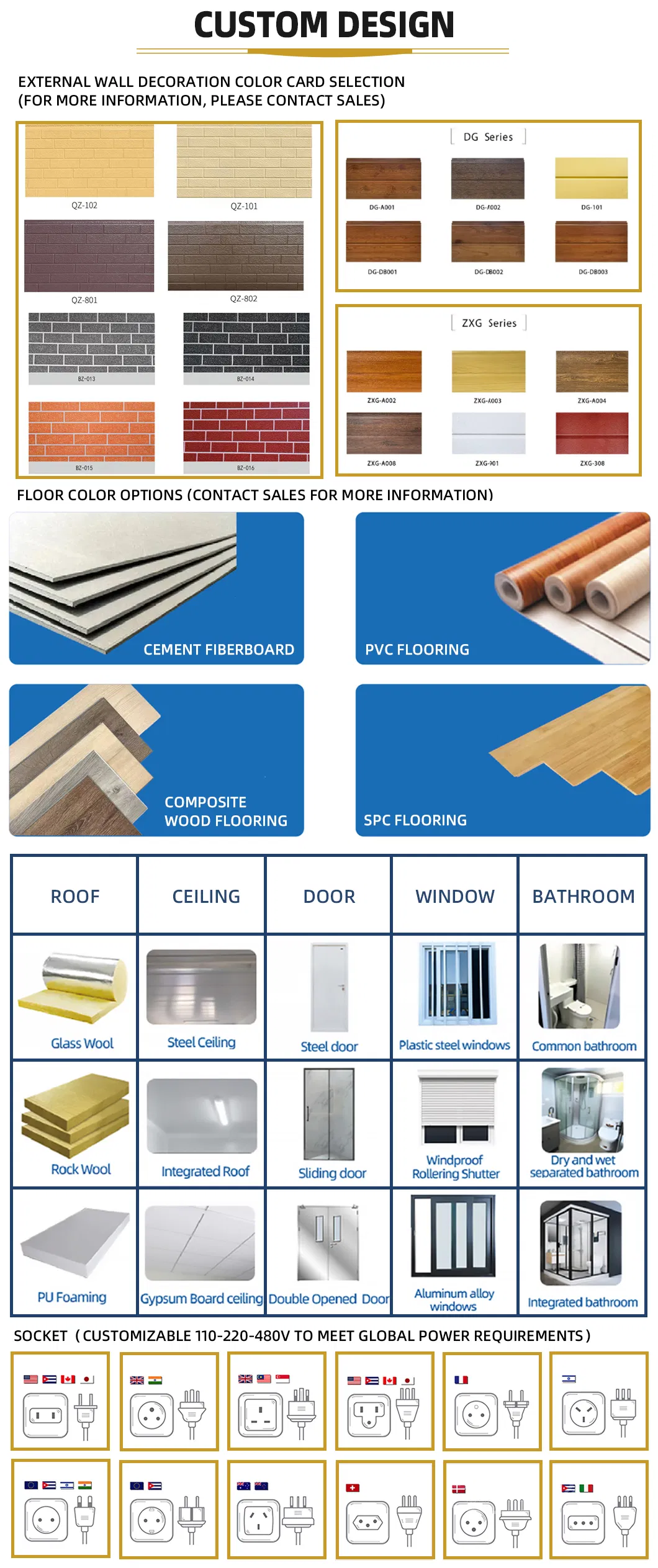

4. High Degree of Customization The interior can be modified as needed: partition walls, pre-installed plumbing and electrical systems, kitchen and bathroom facilities, thermal insulation treatment (rock wool/polyurethane filling), and customized doors and windows (aluminum alloy/plastic steel). The exterior can be painted or covered with decorative panels (wood grain panels, metal carved panels), balancing practicality and aesthetics.

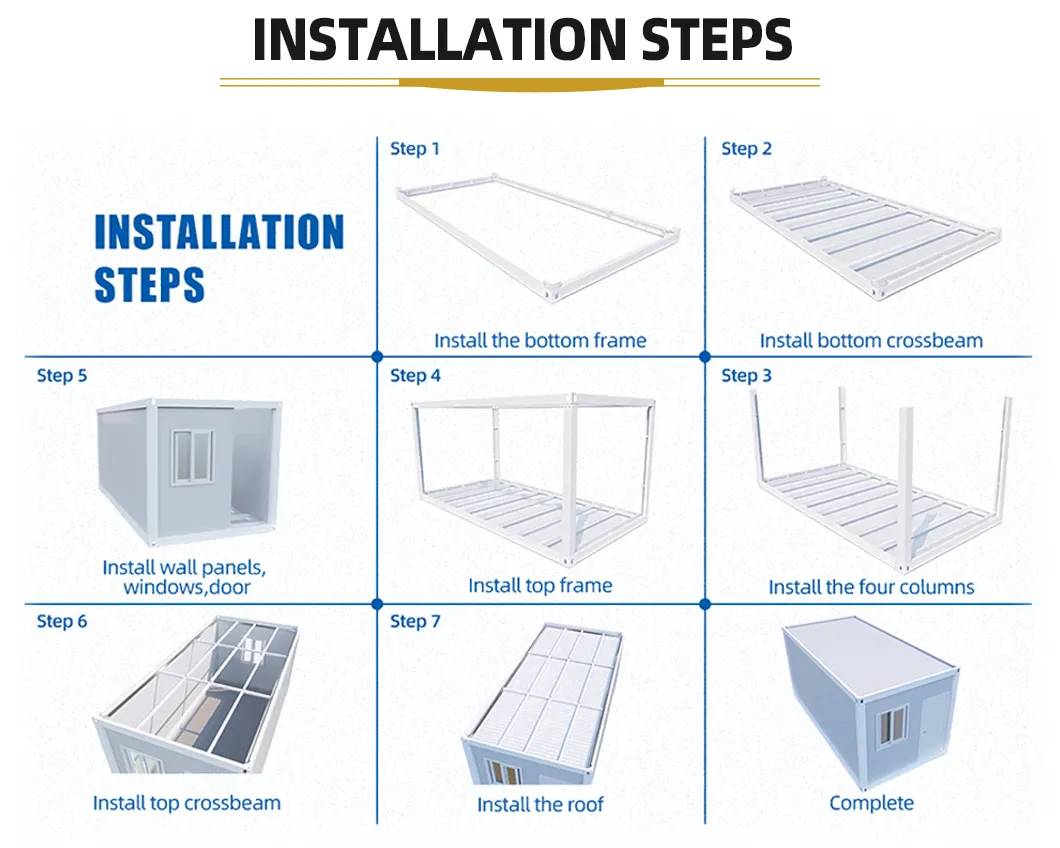

5. Short Construction Period Factory prefabrication (container modification, interior decoration) means that on-site work only requires splicing, fixing, and connecting utilities. A single 20-foot container unit can be produced and ready for use in just 7-15 days. Three people can install a prefabricated modular house in 3 hours, saving 70% of the time compared to traditional construction methods.

II. Core Functions

1. Residential Function A complete living system can be configured: bedroom, living room, kitchen (gas stove, cabinets), bathroom (toilet, shower, sink), air conditioning/underfloor heating interfaces, meeting the needs of long-term residence, equivalent to the basic functions of traditional housing.

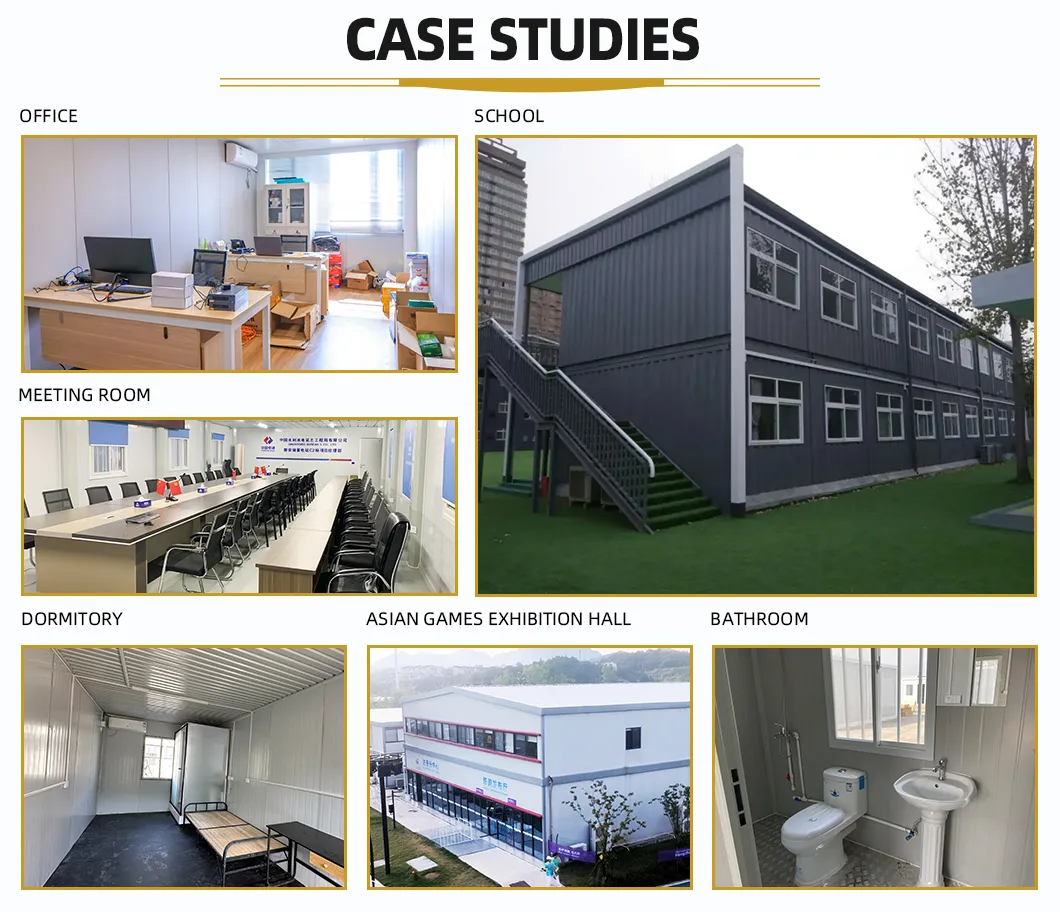

2. Office Function The interior can be designed as an open-plan office area or partitioned into separate rooms (manager's office, meeting room), equipped with power outlets, network interfaces, and ceiling lighting, suitable for corporate offices, temporary project offices, co-working spaces, etc.
3. Commercial Service Function It can be transformed into a commercial terminal: convenience store, milk tea shop, coffee shop, scenic spot ticket booth, street-side shop, with reserved space for display windows and cash registers. Some modules can be designed to be openable (side panels can be folded down to create display surfaces).
4. Public Supporting Functions Suitable for public service scenarios: guard booths (for residential areas/industrial parks), sanitation worker rest rooms, nucleic acid testing booths, express delivery stations, charging station service stations. They are compact, functionally integrated, and ready for immediate use upon installation.
5. Emergency Response Function Temporary housing after disasters (earthquakes, floods), epidemic isolation points, temporary medical stations. They can be quickly mass-produced, transported, and deployed to meet residential or medical needs in emergency situations.

Technical Specifications

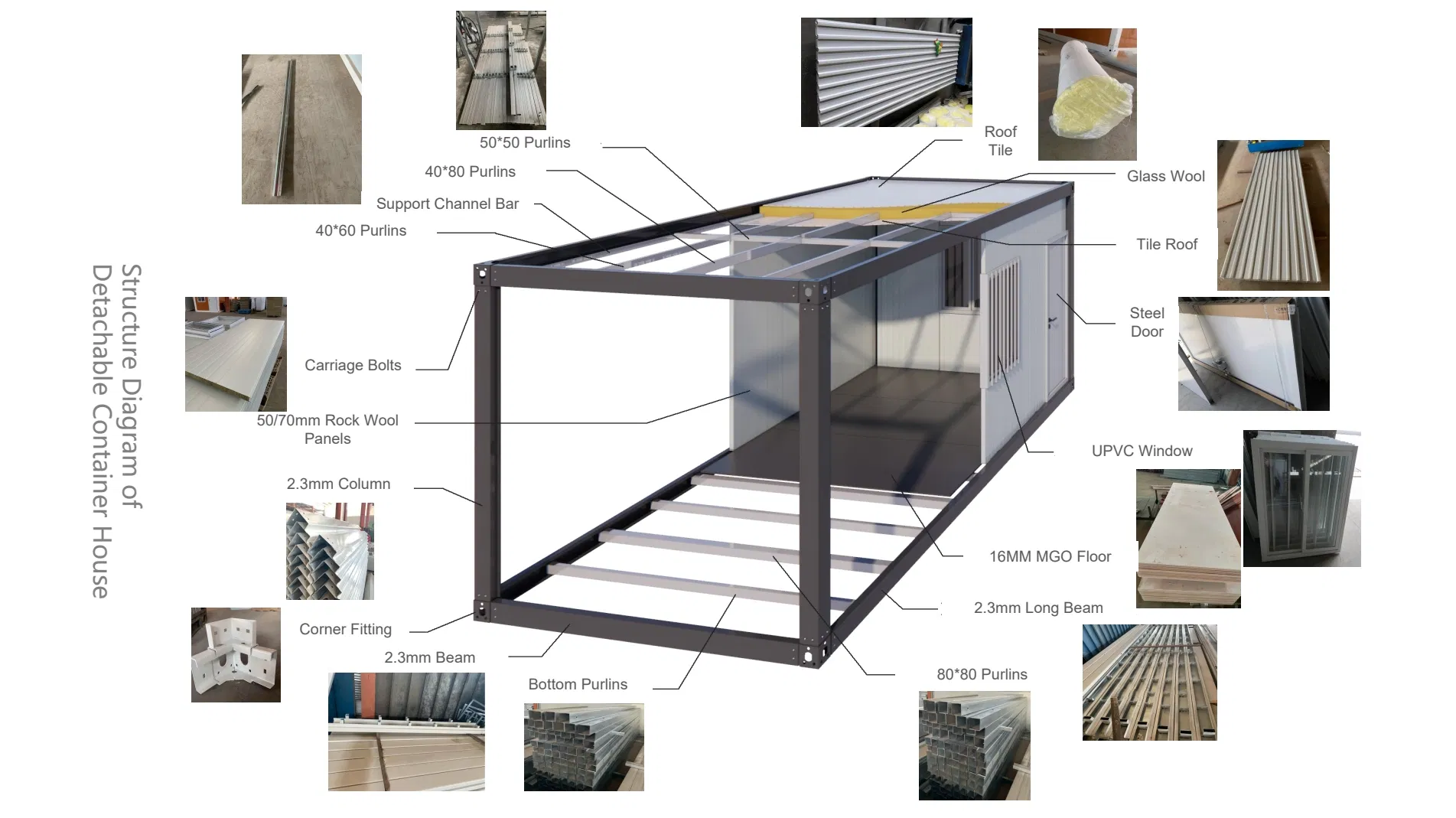

Specification Item		Details & Parameters
Size		595030002800mm (LWH)
Wall panel		0.3mm color steel 50mm rock wool sandwich panel
Door		Steel door, W840mm x H2035mm, 0.5mm panel, fireproof door
Window		UPVC series sliding window, size: W1120mm x H1100mm x 2pcs; 5+9+5 hollow double glass with screen and anti-theft Rod.
Roof		0.4mm Thickness, 980 Type Color Steel pressure type tile
Floor		18mm thickness A Grade cement fiberboard + 1.6mm thickness PVC floor leather, hot melt caulking
Frame		Ground main beam: Section 150mm, galvanized roller beam 2.5mm thick Ground Secondary beam: 120mm501.8mm thick galvanized c-type steel / 601201.4 galvanized square pass Column: Specification 210150mm, galvanized roller 2.5mm thick Roof main beam: section 160mm, galvanized roller beam 2.5mm thick Roof secondary beam: 80mm40*1.5mm thick galvanized roller C-type beam
Technical parameter	Resistant temperature	-20°C to 50°C
	Wind load	11 grade
	The resistant earthquake grade	7 fission activate

Company Profile

Packing and Transportation

Certifications

Frequently Asked Questions

1. Do you provide on-site installation service?

We provide very detailed installation instruction drawings and videos for every project. For large projects, we will have both installation workers and supervisors on site. The fee for the on-site service should be negotiated with clients.

2. What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large orders, the delivery time should be negotiated.

3. How to control the quality of your product?

a. Quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. Quality of the raw material: choose the qualified raw material.
c. Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, we will be responsible for all quality problems caused by our production.

5. Is there a clear service life of your products?

Under conventional climate and environment, the service life of the container house steel frame is 20 years.

6. What designs do you have in different climates?

Strong wind region: improve the wind-resisting ability of the internal structure.
Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
High corrosion region: use corrosion resistant material, or paint anti-corrosive coating.
