| External Dimensions | L6055mm × W2438mm × H2896mm |
| Internal Dimensions | L5845mm × W2228mm × H2520mm |
| Floor Load Capacity | ≥1.5kN/m² |
| Wall Live Load | 0.6~1.0kN/m² |
| Ceiling Live Load | 0.5kN/m² |

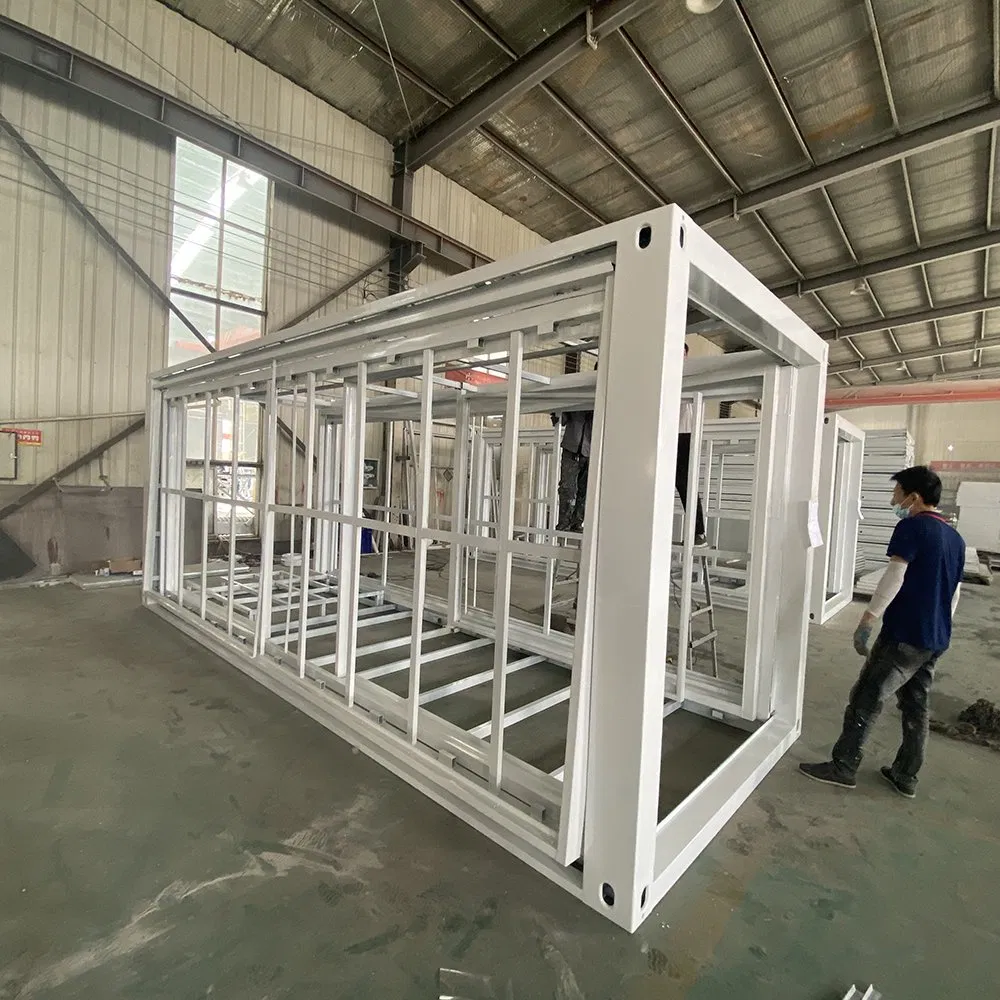

| Roof Frame | 2.5mm-thick galvanized square tube, 80×100mm |
| Base Frame | 2.5mm-thick galvanized square tube, 80×100mm |
| Corner Columns | 2.5mm-thick galvanized square tube, 210×150mm, height 2526mm |
| Support Beams | Q235/Q234 galvanized steel, 80×40×1.3mm (roof), 50×100×1.5mm (base) |
| Walls | Rock wool sandwich panel (density 80kg/m³) + 0.4mm aluminum-zinc coated color steel plate |
| Roof | 0.45mm color steel plate + 50mm glass wool insulation layer + 0.35mm ceiling board |
| Floor | 18mm fiber cement board + 1.6mm PVC floor covering |
| Insulation Layer | Rock wool/glass wool (Flame Retardant Class A) |
| Fire Rating | Class A |
| Earthquake resistance | Level 8 |
| Thermal Insulation | Wall K-value ≤0.442W/m²·K |
| Wind Resistance | Level 11 |

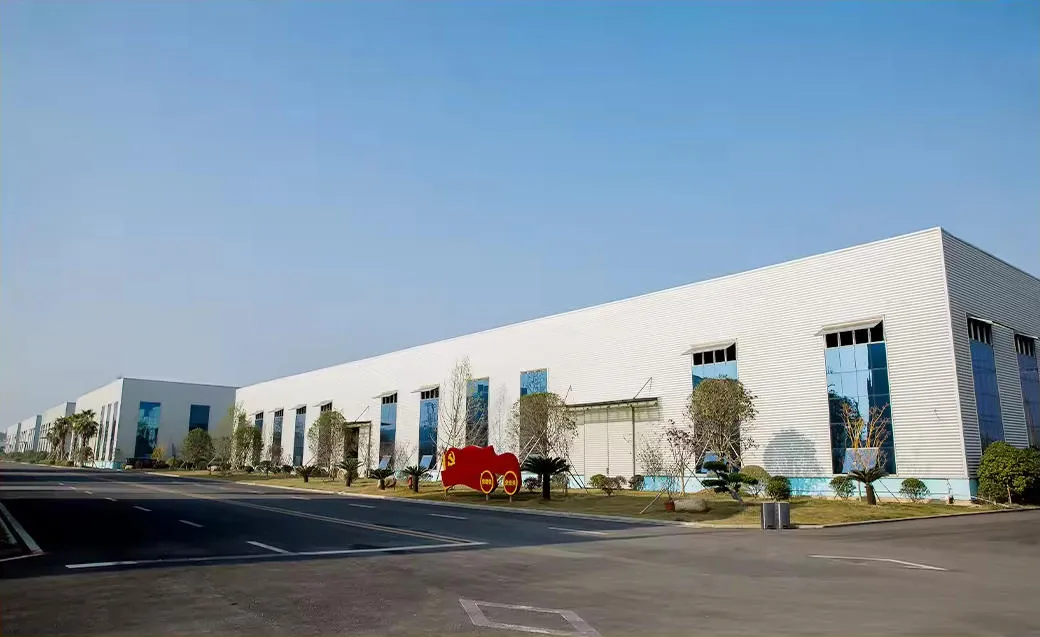

Founded in 2023, it is a company specializing in sustainable building and renewable energy solutions. With a team of over 30 professionals and a production and operation area exceeding 3,000 square meters, the company adheres to sustainable development, professionalism, and a customer-centric value system, maintaining strict quality control throughout the entire process.
The company's three main business areas are:
