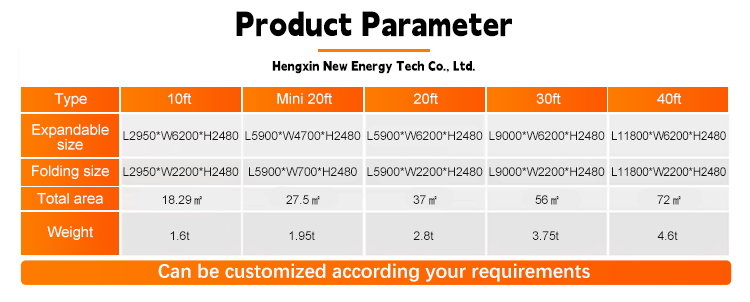

| Characteristic | Outer size (mm) | 6200*5900*2480 |
| Inner size (mm) | 6040*5740*2200 | |

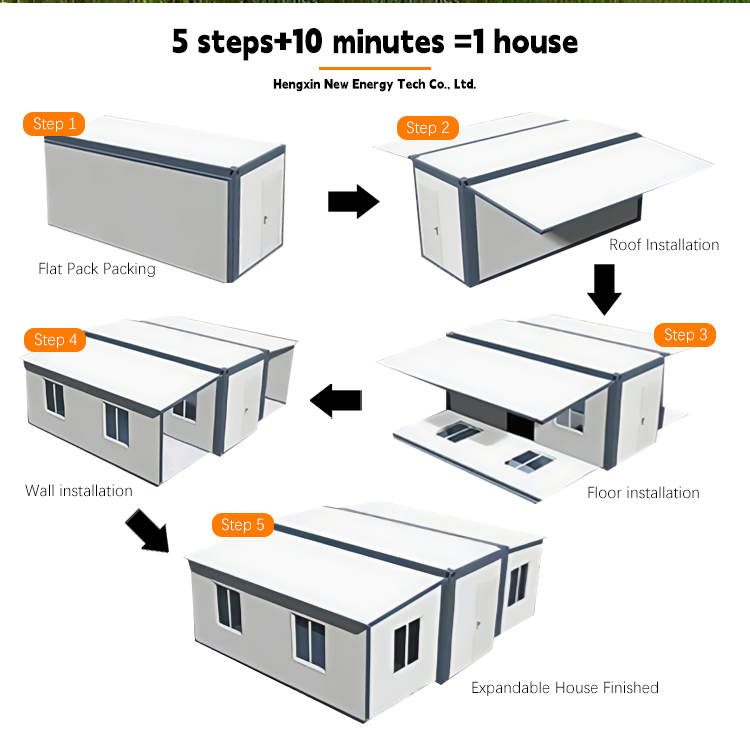

| Foldable state (mm) | 2200*5900*2480 | |
| Total weight (t) | 2.8t | |
| Structure | Middle roof beam | 80*100*T3.0mmQ235B |
| Middle bottom beam | 80*100*T3.0mmQ235B | |
| Side beam | T2.0mmQ235BZ | |
| Middle column | 150*210*T2.5mmQ235B | |
| Side wall frame | 40*80*T1.5mmQ235B | |
| side bottom purlin | 40*60*T1.5mmQ235B | |
| middle bottom top purlin | 40*80*T1.5mmQ235B | |
| Side top frame | 40*80*T1.5mmQ235B | |
| Foldable hinge | 13mm galvanized hinge | |
| overall frame protective coating | electrostatic spraying/straight white plastic powder | |
| Hanging head | T4mm Q235B | |
| Top | Outer top plate | T50mm flame retardant purification foam plate |
| Inner ceiling | T193 | |
| Wall plate | Top insulation | t50mm flame retardant purification foam plate |
| Side ,rear and front | t65mm flame retardant purification foam plate | |
| Inner partition | T50mm flame retardant purification foam plate | |

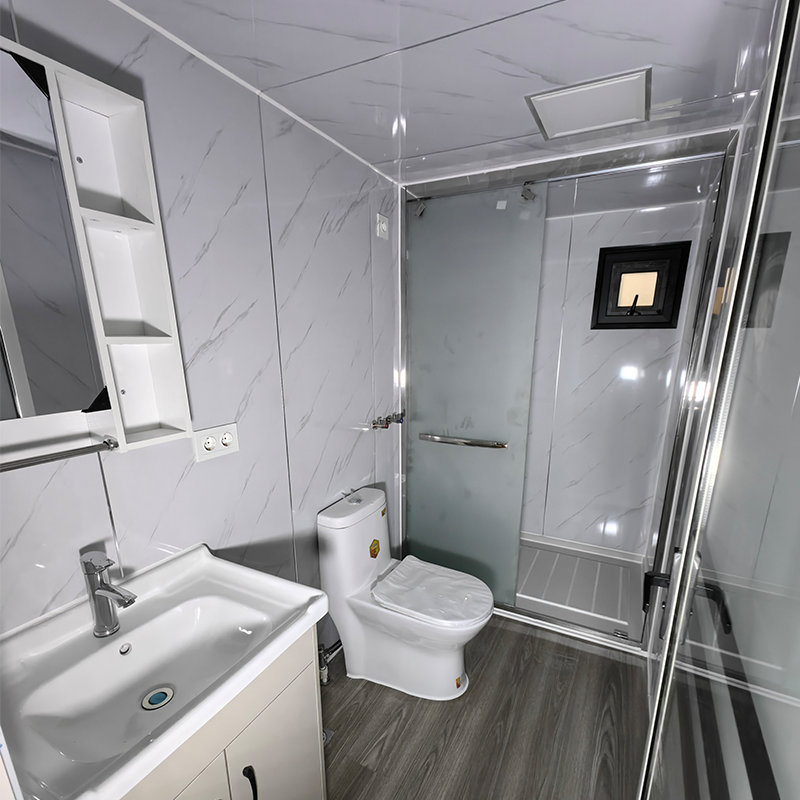

| Inner toilet | 1800 length*134 width for | |
| Floor | Middle | Fire-proof cement 18mm |
| Each sides | 18mm polywood | |
| Electricity |
Electrical layout must be installed strictly in accordance with moisture-proof regulations, and all electrical products must comply with CE or UL certification. According to the electrical engineering specifications, 6 indoor LED lights, 14 single opening sockets with 6 holes, 4 single opening sockets with 3 holes, and 5 single opening sockets; 1 piece of 63A leakage protector for all , 1 piece of 32A circuit breaker in kitchen and bathroom, 1 piece of 32A air conditioner, 1 piece of 25A socket in bedroom and living room, and 1 piece of 16A lighting bulb. Voltage 220V or 110BV |
|

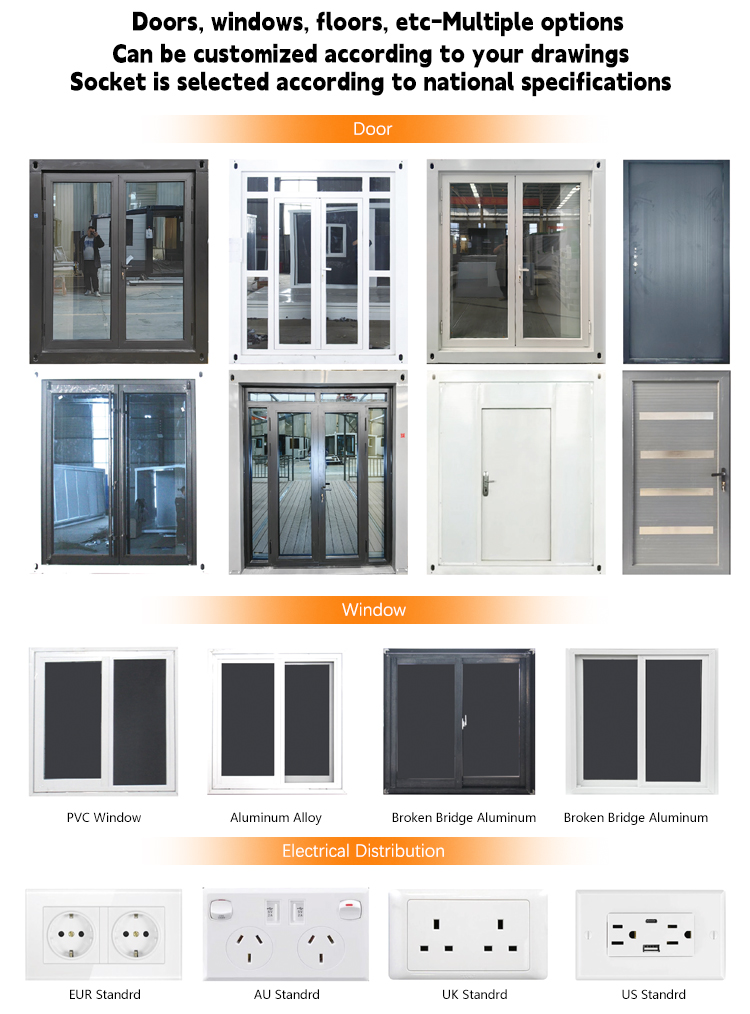

| Entry door | 1 piece of Burglar door | |
| Window | 4 piece of Fiberglass sliding window (970*970) | |
| Quality | One year warranty | |
